How to configure PX15 POLE DISPLAY

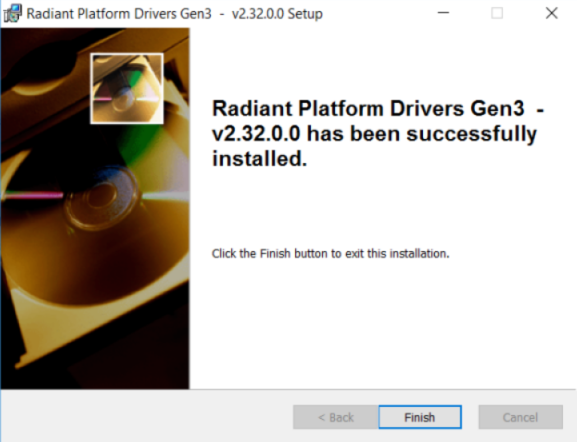

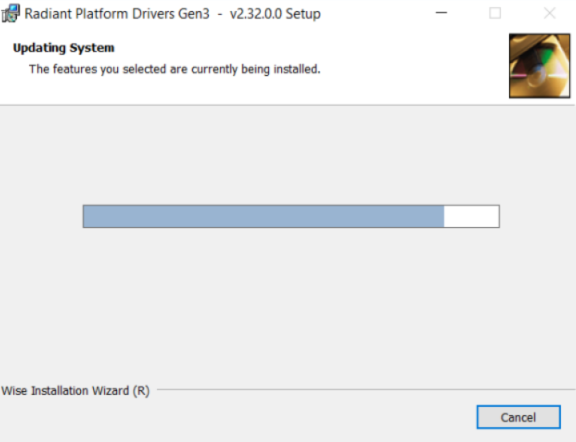

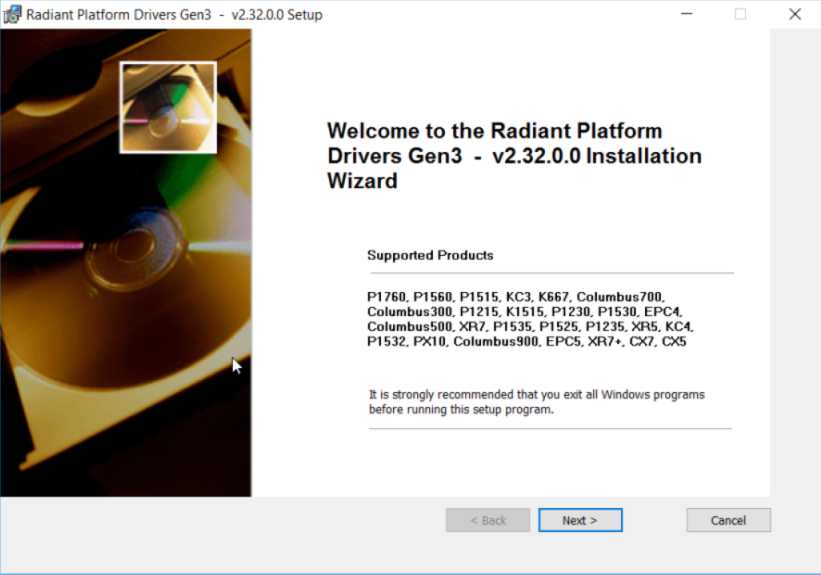

  1. Install the Radiant Platform Drivers Gen3 on the PX15 POS


        2. Go to C:\p15xx and run “P15xxCfg.exe”


            a. Click Ok on the error “failed to read registry key!”

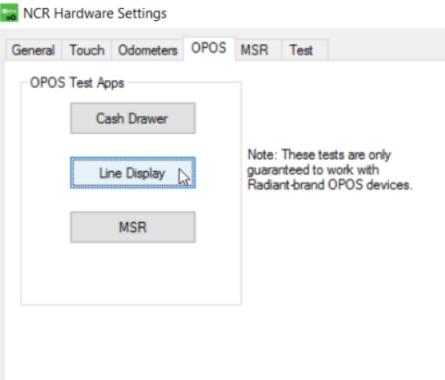

            b. Select OPOS Tab > Line Display

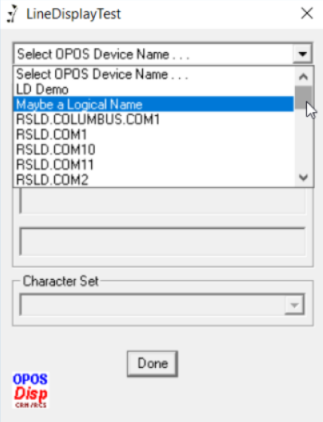

            c. Select the working COM for POLE display (trial and error)

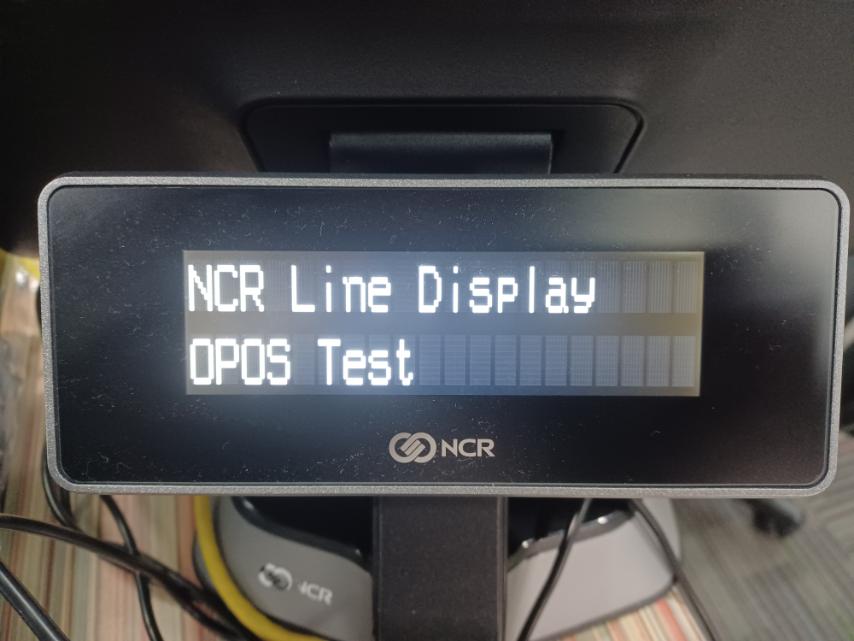

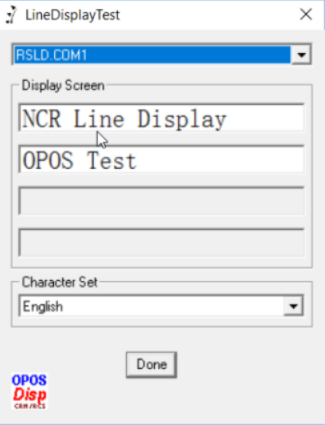

            d. Check the physical Pole display if same texts are displayed






            e. Take note of the working COM port > OK






   3. Open Aloha Manager on the server

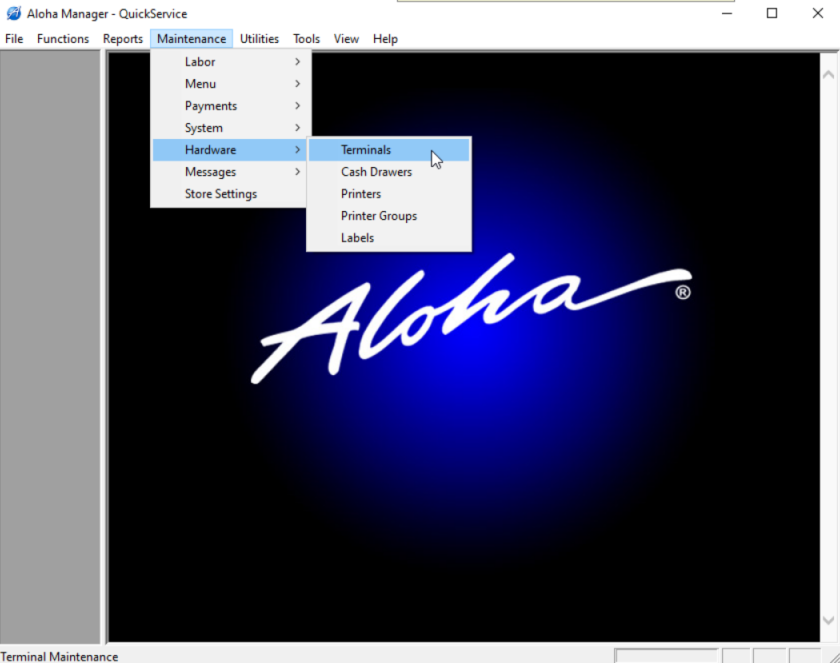

     4. Go to Maintenance > Hardware > Terminals

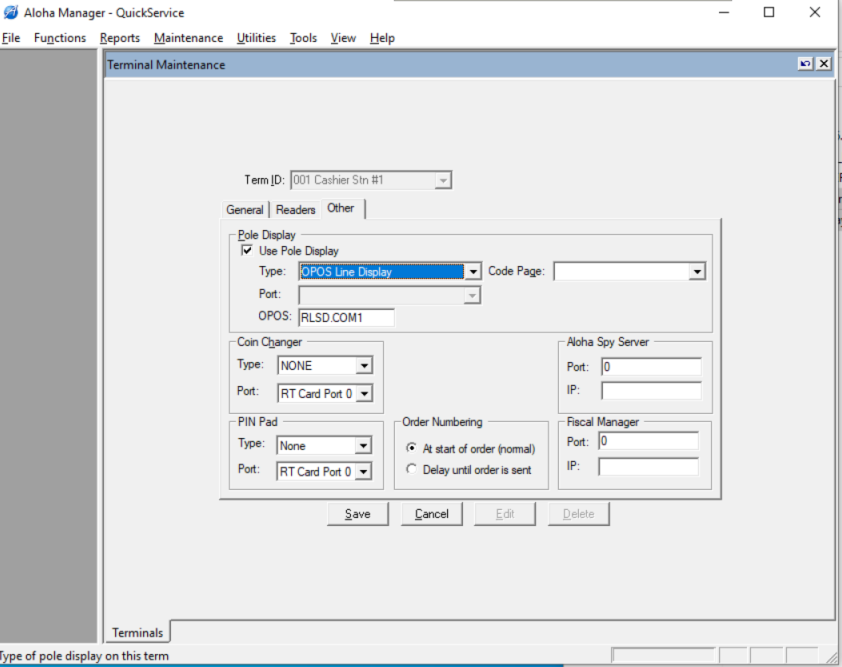

    5. Select the terminal to edit, go to “Other” tab and set the following parameters



            a. Check Pole Display Type

                    * Type – OPOS Line Display

                    * OPOS – RLSD.COM1 <working Com port>





                    * Click Save

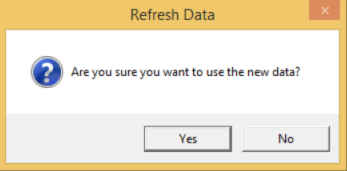

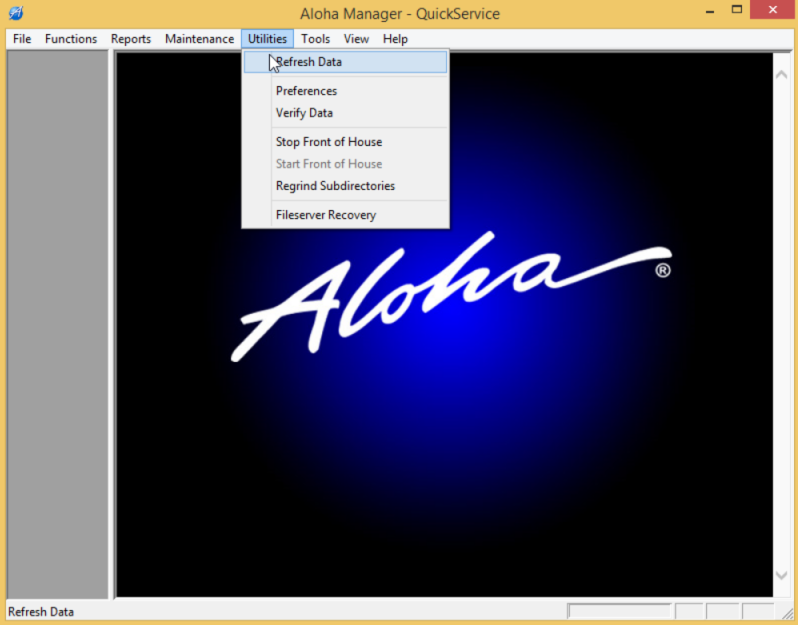

    6. Go to Utilities > Refresh Data











**** End of Configuration ***
