How to configure BIXOLON POS Printer

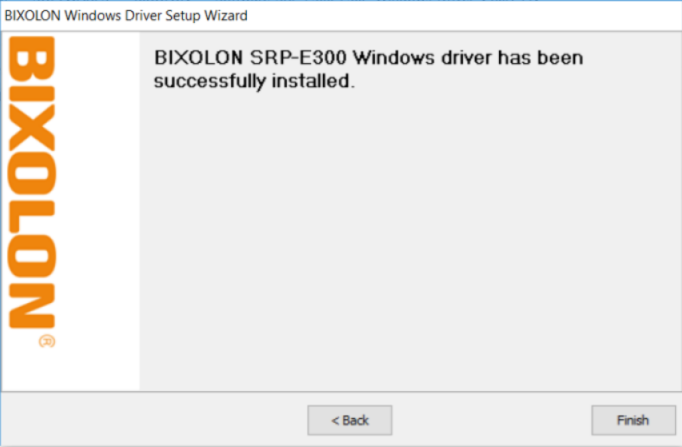

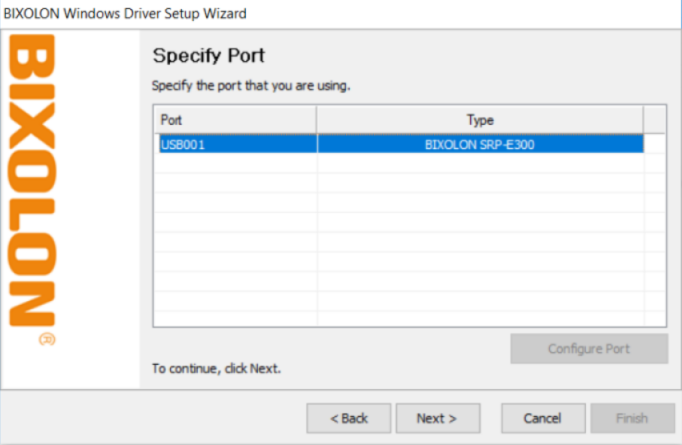

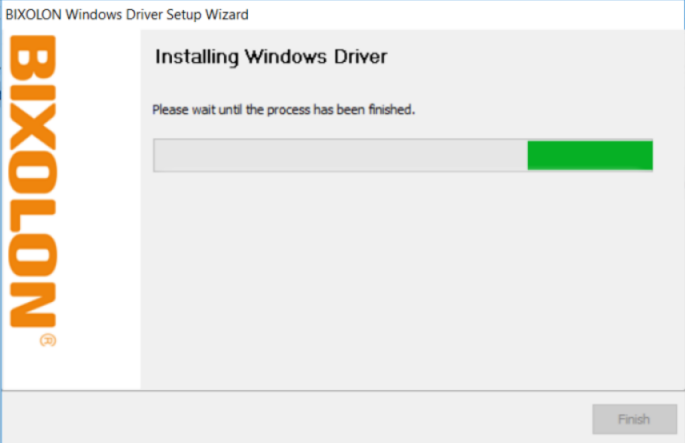

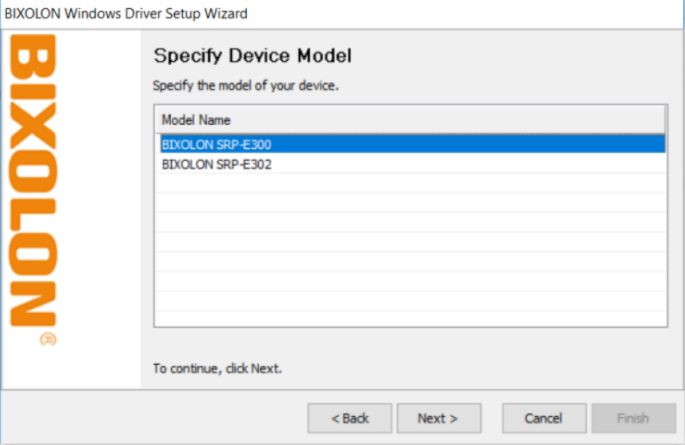

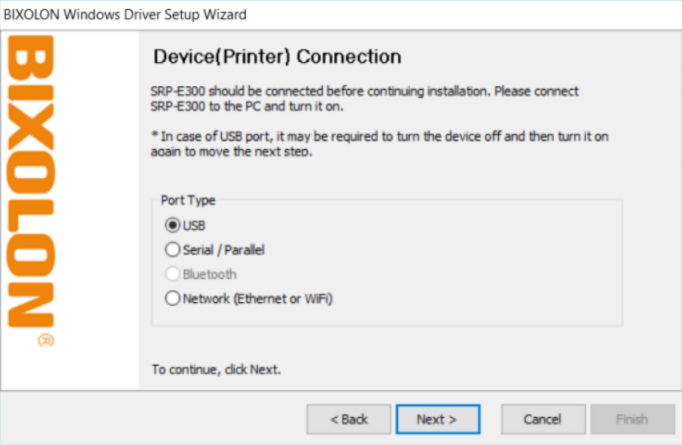

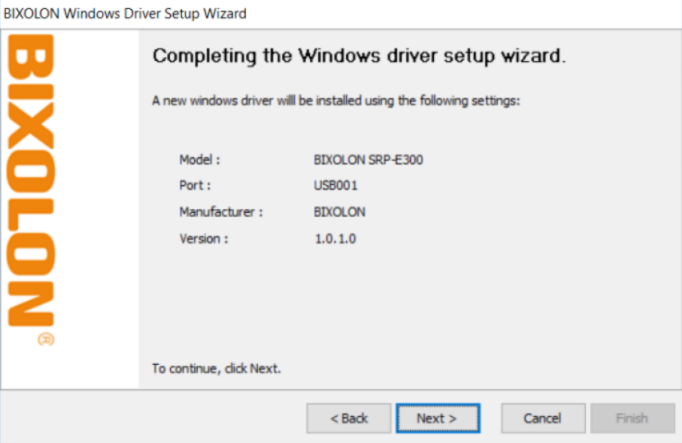

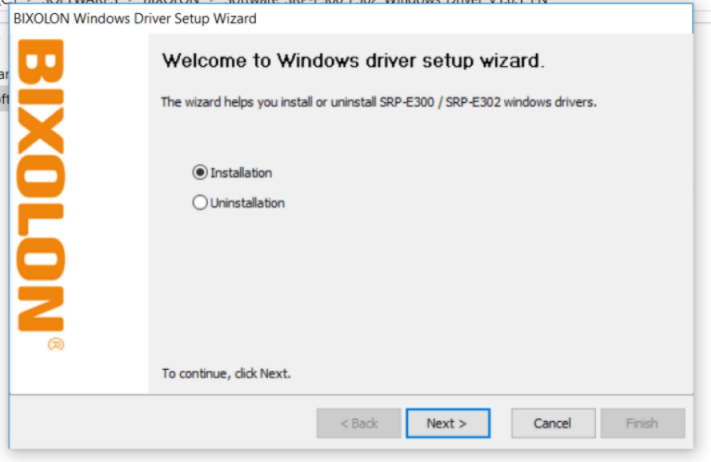

    1. Install BIXOLON POS printer driver on the POS

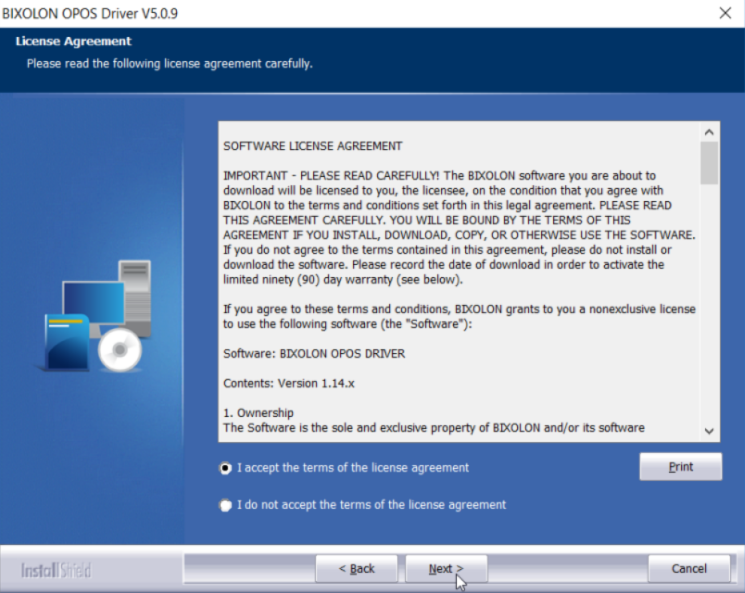

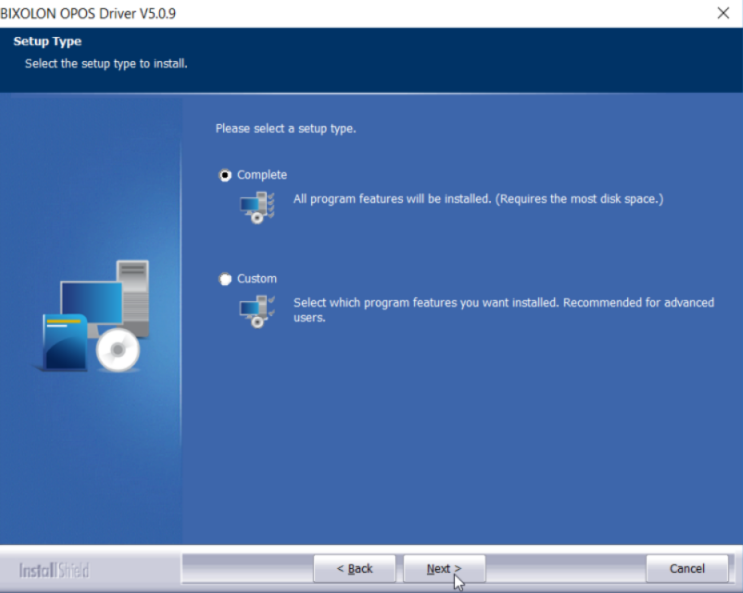

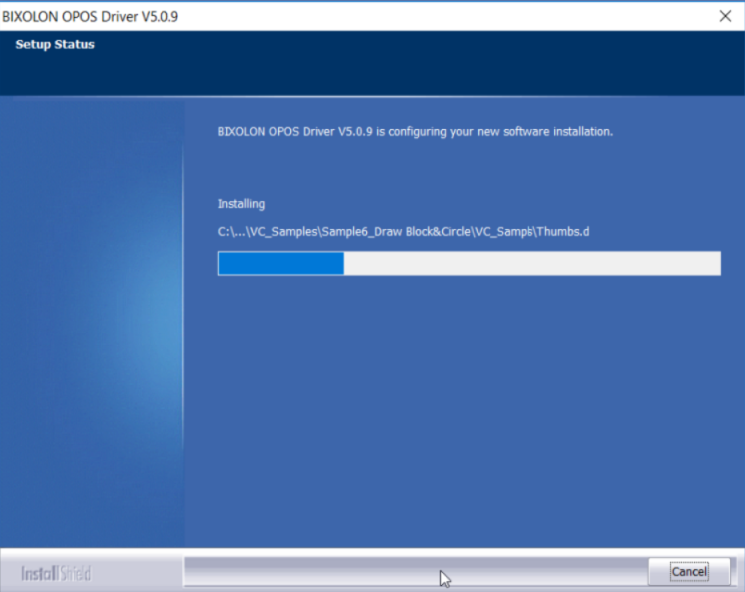

    2. Install the BIXOLON OPOS driver

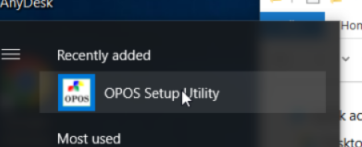

    3. Open BIXOLON OPOS app

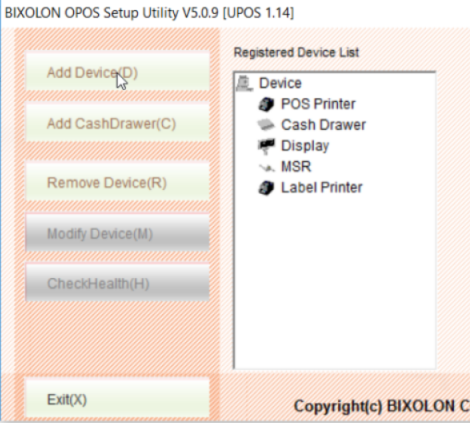

            a. Click add device

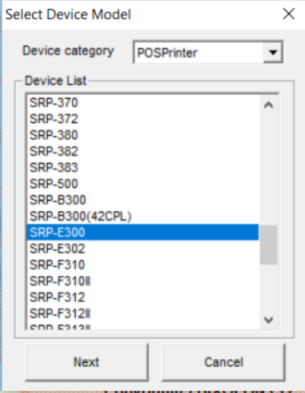

             b. Select the device model > Next

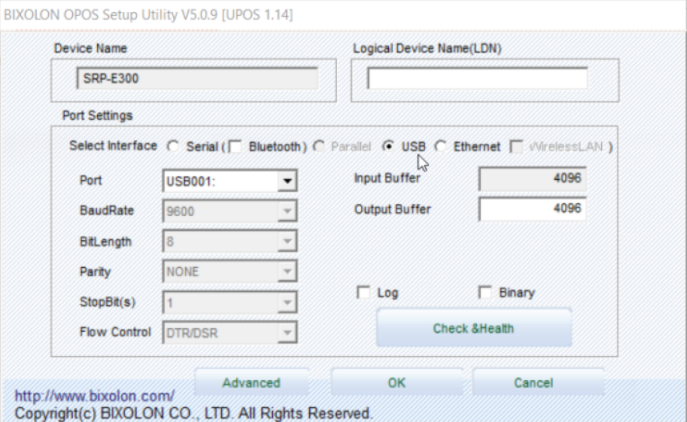

            c. Select the device interface > OK

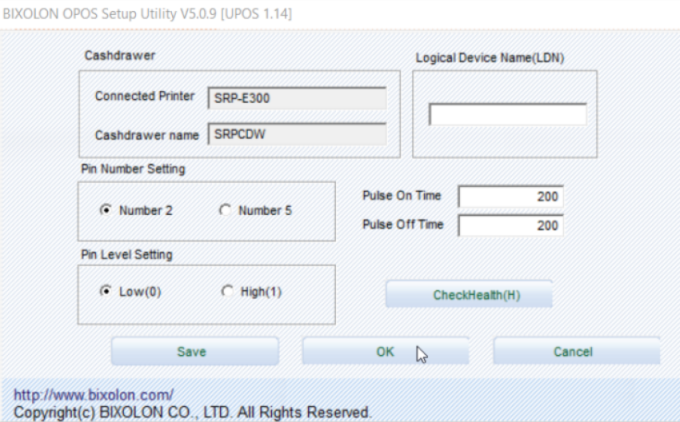

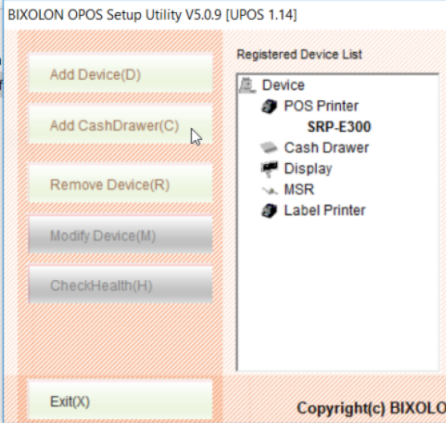

           d. Click “Add CashDrawer(C)”




            e. Select the printer model > OK








    4. Open devices and printers in the control panel

    5. Take note of the BIXOLON printer name

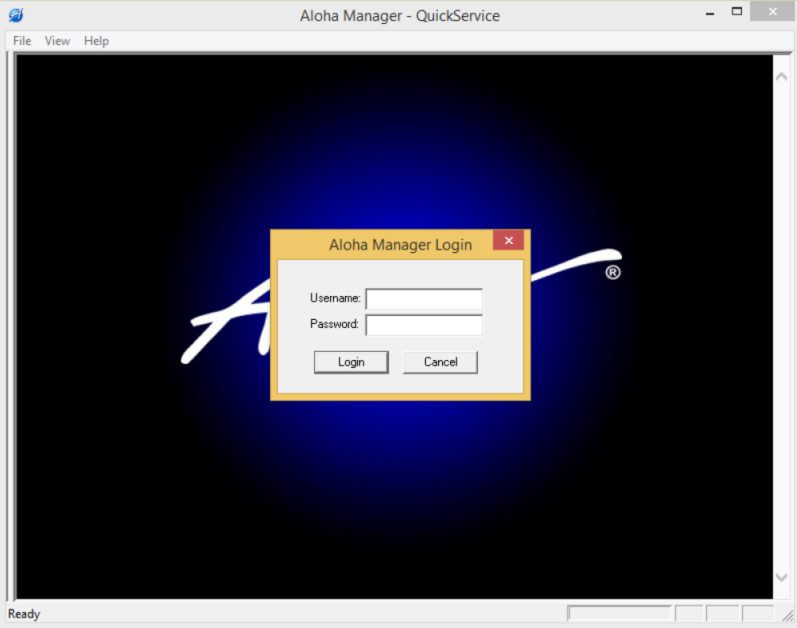

    6. Open Aloha Manager on the server

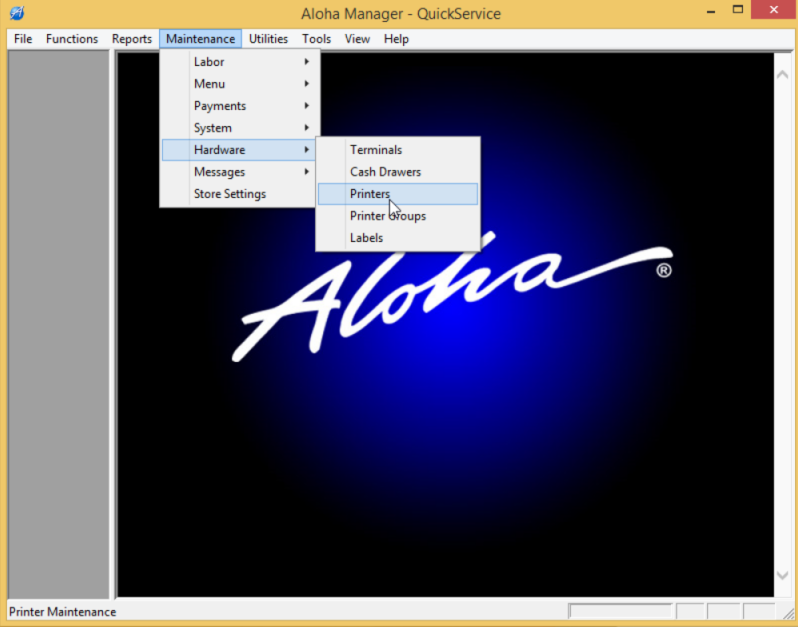

    7. Go to Maintenance > Hardware > Printers

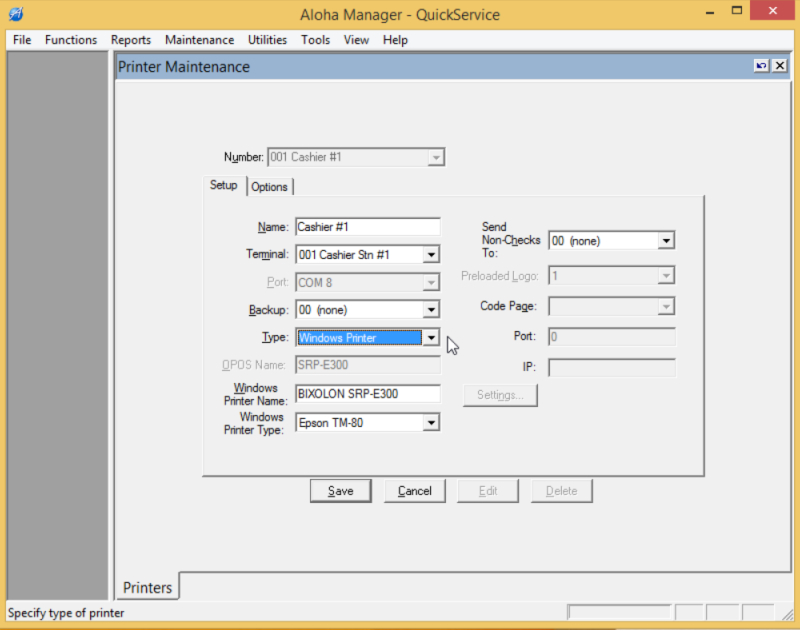

    8. Select the terminal to edit and set the following parameters

            a. Type – Windows Printer

            b. Windows Printer Name - <POS Printer name>

            c. Windows Printer Type – Epson TM-80



                d. Click save

Note: do this to the other terminal that will use the same POS printer.

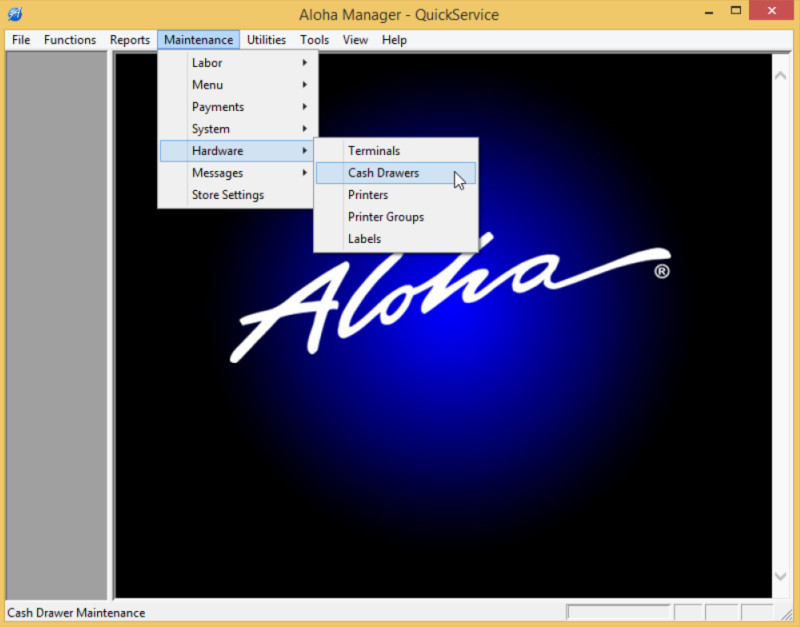

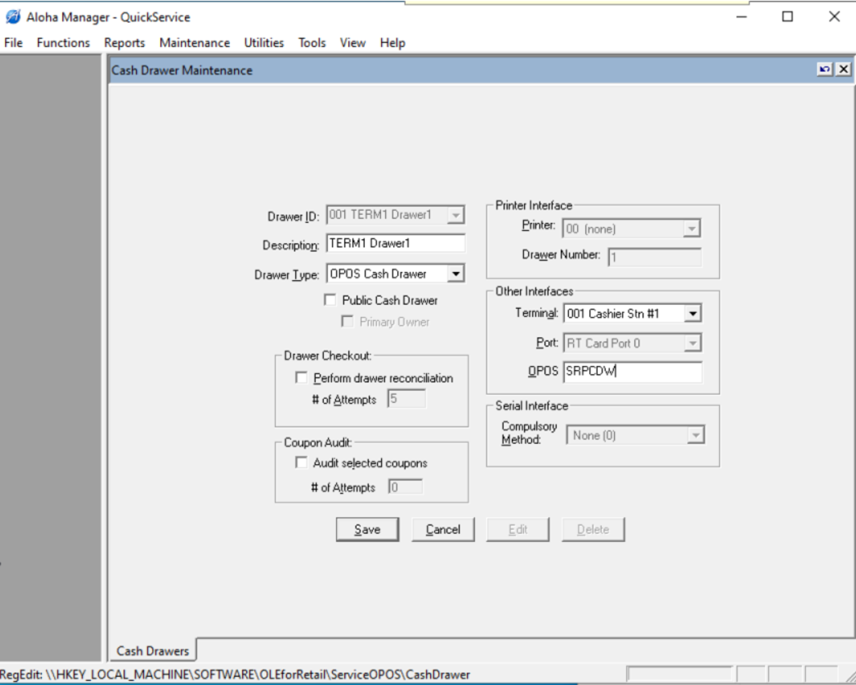

    9. Go to Maintenance > Hardware > Cash drawers





    10. Select the terminal to edit and set the following parameters

            a. Drawer Type – OPOS Cash Drawer

            b. OPOS - <drawer name on BIXOLON OPOS app

        c. Click Save

Note: do this to the other terminal that will use the same POS printer.

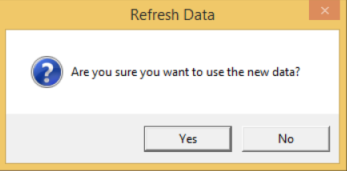

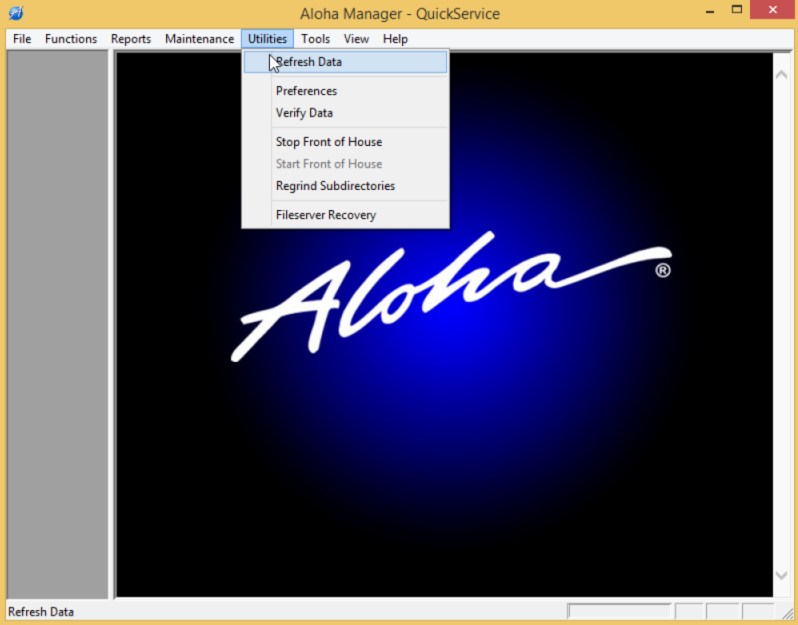

    11. Go to Utilities > Refresh Data





**** End of Configuration ***
